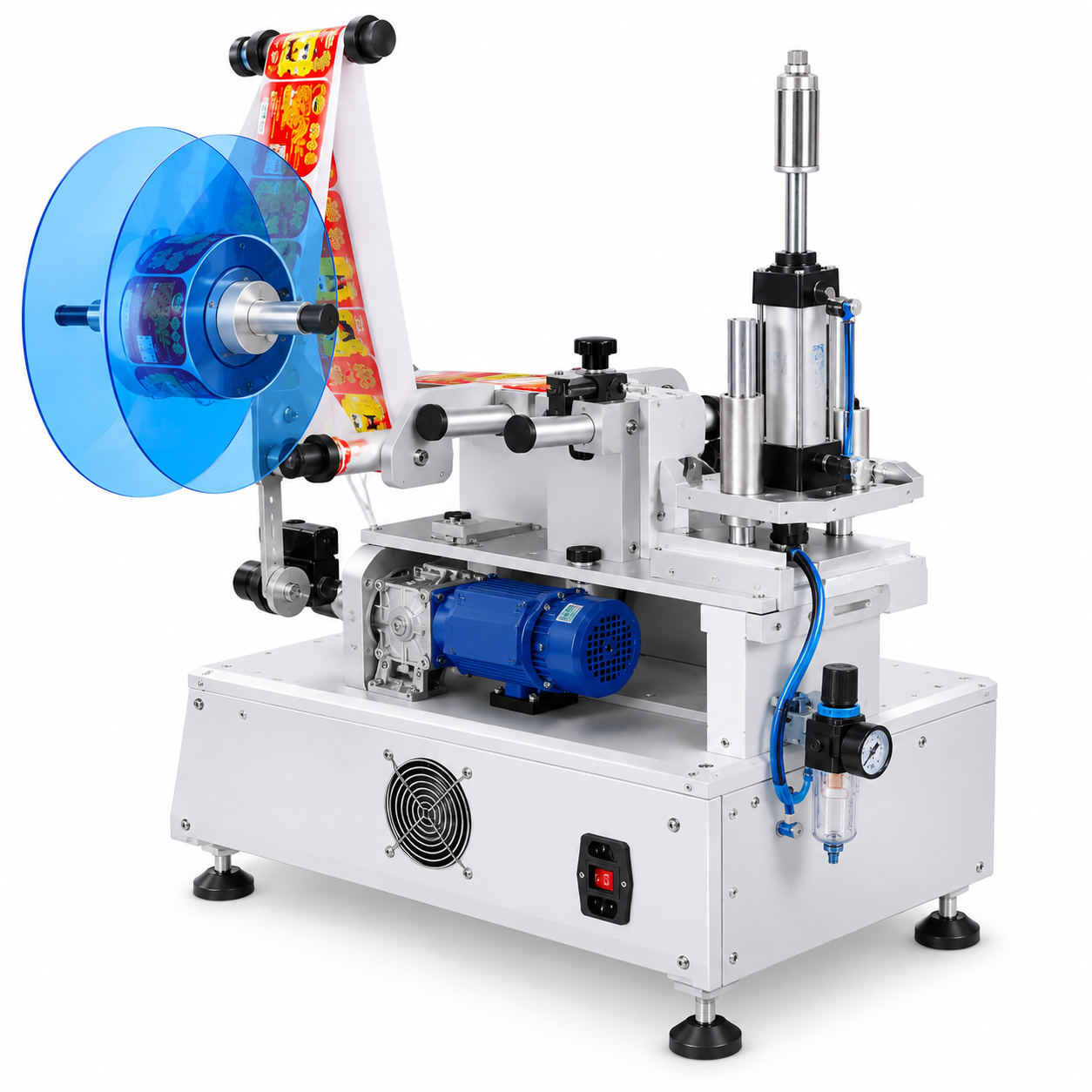

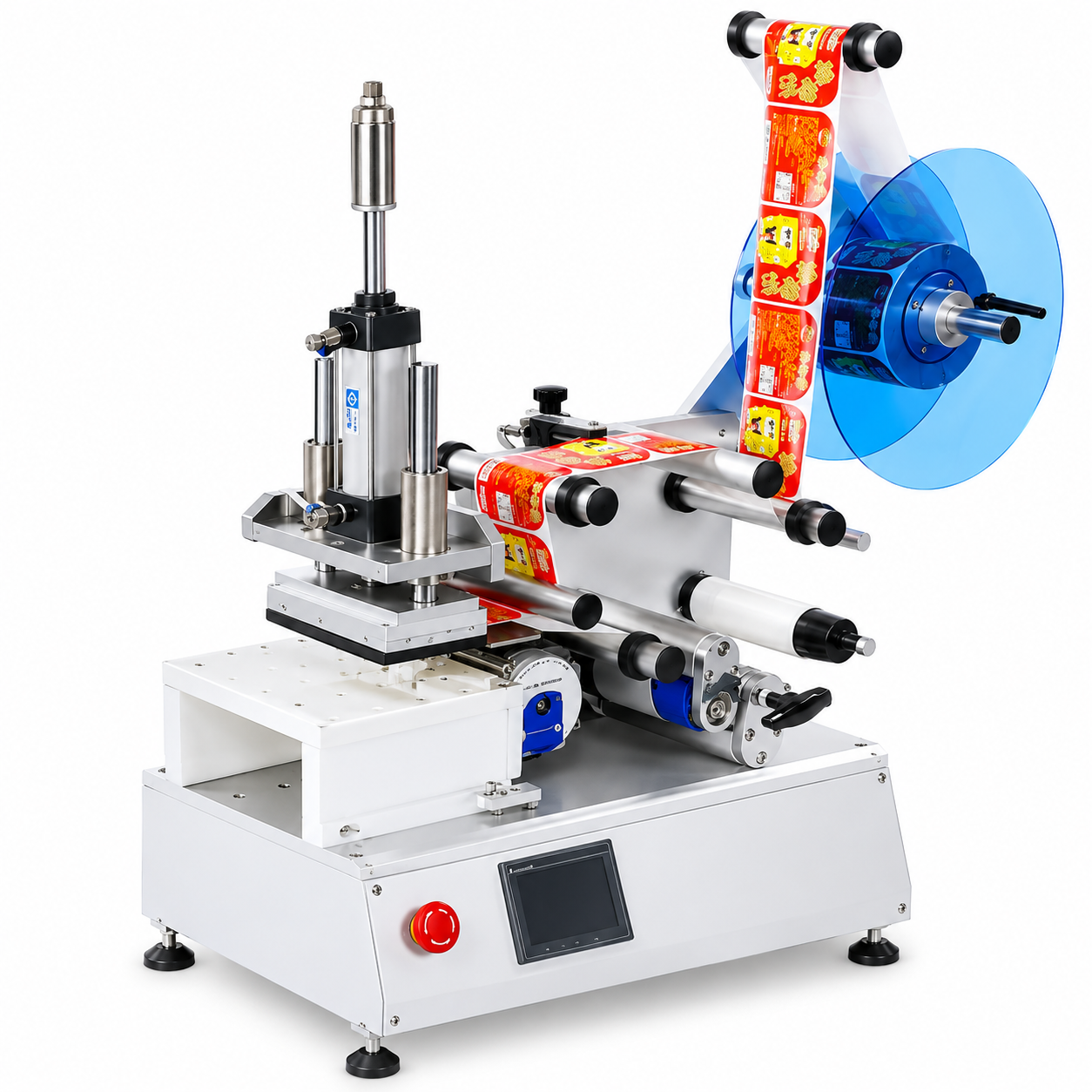

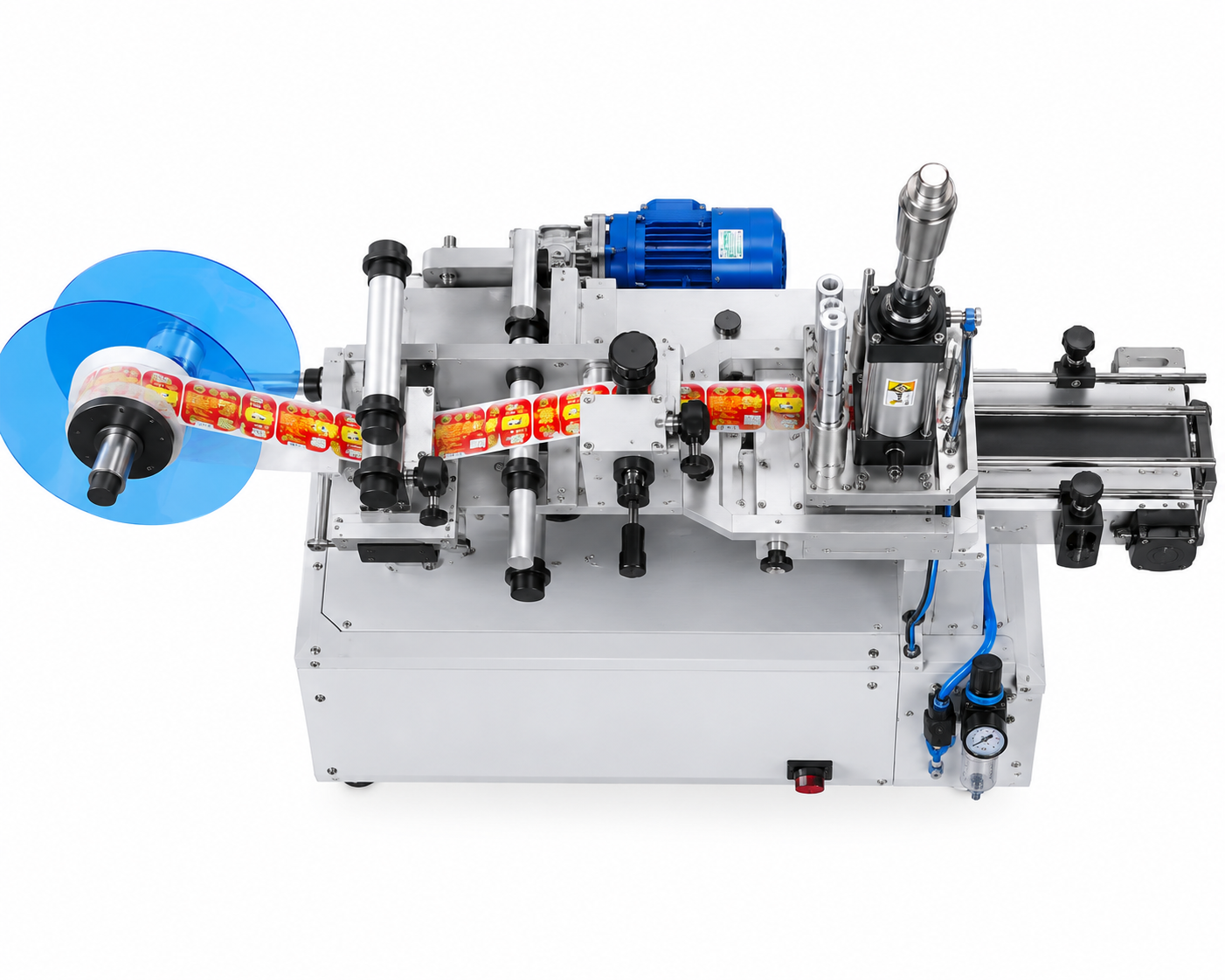

SEMI-AUTOMATIC ROUND BOTTLE LABELLING MACHINE

Our Semi-Automatic Round Bottle Labelling Machine is designed for the accurate and efficient application of self-adhesive labels on round and cylindrical bottles, jars and containers. The machine features an adjustable roller and guide system to ensure smooth label application and consistent positioning. Its compact design, easy operation and low maintenance requirements make it an ideal solution for small and medium-scale production. Suitable for the cosmetic, pharmaceutical, food, beverage and chemical industries.

KEY FEATURES

• MANUAL / SEMI-AUTOMATIC LABEL APPLICATION
• SUITABLE FOR ROUND & CYLINDRICAL CONTAINERS
• HIGH LABELLING ACCURACY
• ADJUSTABLE LABEL POSITIONING SYSTEM
• SMOOTH AND CONSISTENT LABEL APPLICATION
• EASY LABEL ROLL LOADING AND REPLACEMENT
• ADJUSTABLE GUIDE AND ROLLER SYSTEM
• COMPACT AND ROBUST MACHINE DESIGN
• DIGITAL CONTROL PANEL FOR EASY OPERATION
• LOW MAINTENANCE REQUIREMENT
• SUITABLE FOR SMALL AND MEDIUM BATCH PRODUCTION
• IDEAL FOR COSMETIC, PHARMACEUTICAL, FOOD AND CHEMICAL INDUSTRIES

TECHNICAL SPECIFICATIONS

• MACHINE TYPE: MANUAL / SEMI-AUTOMATIC LABEL APPLICATOR
• APPLICATION: ROUND & CYLINDRICAL BOTTLES / CONTAINERS
• LABELLING TYPE: SELF-ADHESIVE / PRESSURE-SENSITIVE
• OPERATION: MANUAL / SEMI-AUTOMATIC
• LABELLING SPEED: APPROX. 15–40 BOTTLES/MIN*
• LABELLING ACCURACY: ±1–2 MM*
• CONTAINER DIAMETER: APPROX. 20–120 MM*
• CONTAINER HEIGHT: APPROX. 30–250 MM*
• LABEL LENGTH: APPROX. 10–300 MM*
• LABEL WIDTH: APPROX. 10–150 MM*
• LABEL ROLL DIAMETER: UP TO 250–300 MM*
• LABEL ROLL CORE: 76 MM (3 INCH)
• MACHINE MATERIAL: SS304 STAINLESS STEEL / ALUMINIUM
• CONTROL SYSTEM: DIGITAL CONTROL / HMI*
• SENSOR: PHOTOELECTRIC SENSOR*
• POWER SUPPLY: 220V, 50HZ, SINGLE PHASE*
• POWER CONSUMPTION: APPROX. 0.2–0.5 KW*
• INSTALLATION TYPE: TABLETOP
• SUITABLE PRODUCTS: BOTTLES, VIALS, JARS, CANS & CYLINDRICAL CONTAINERS
