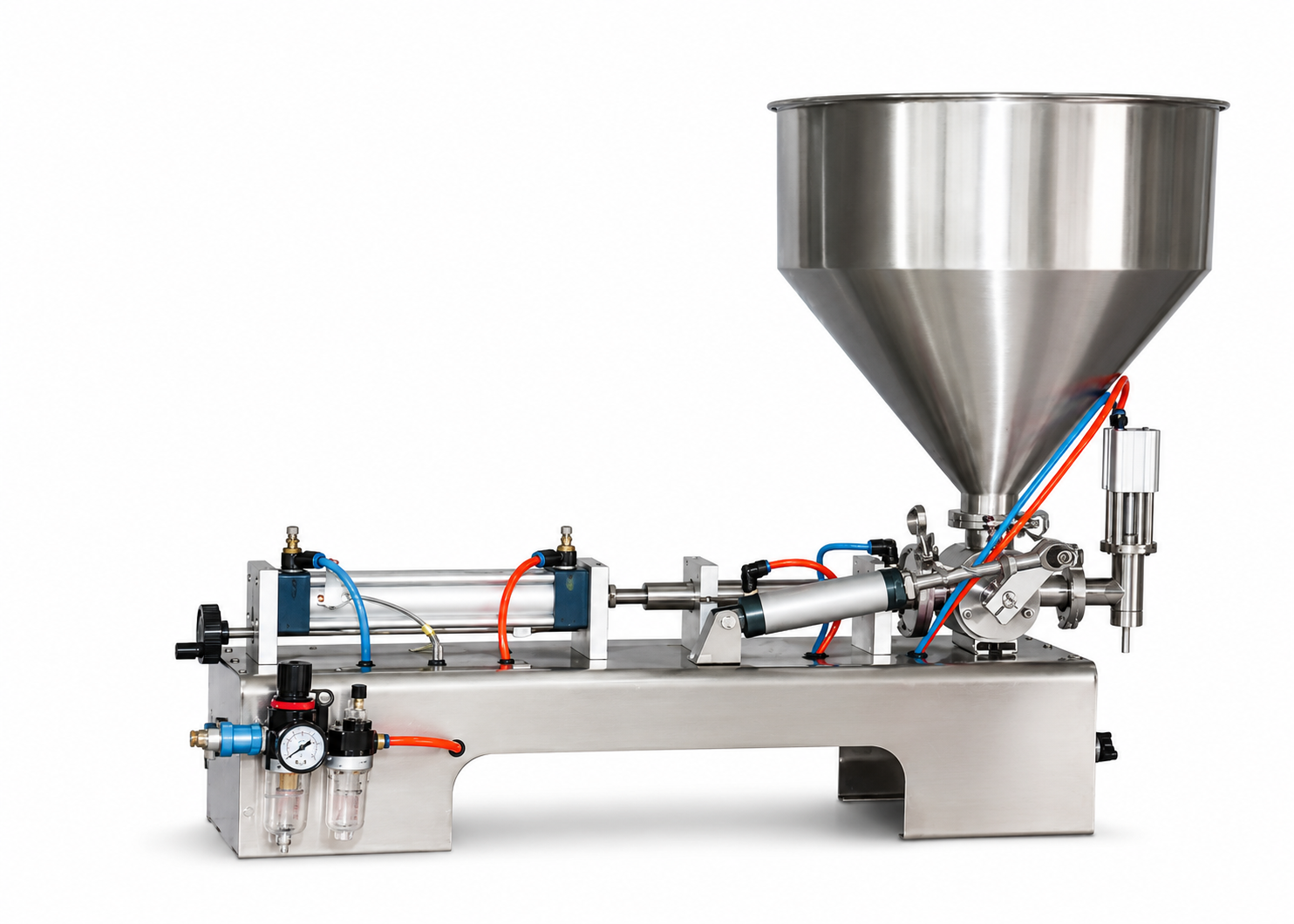

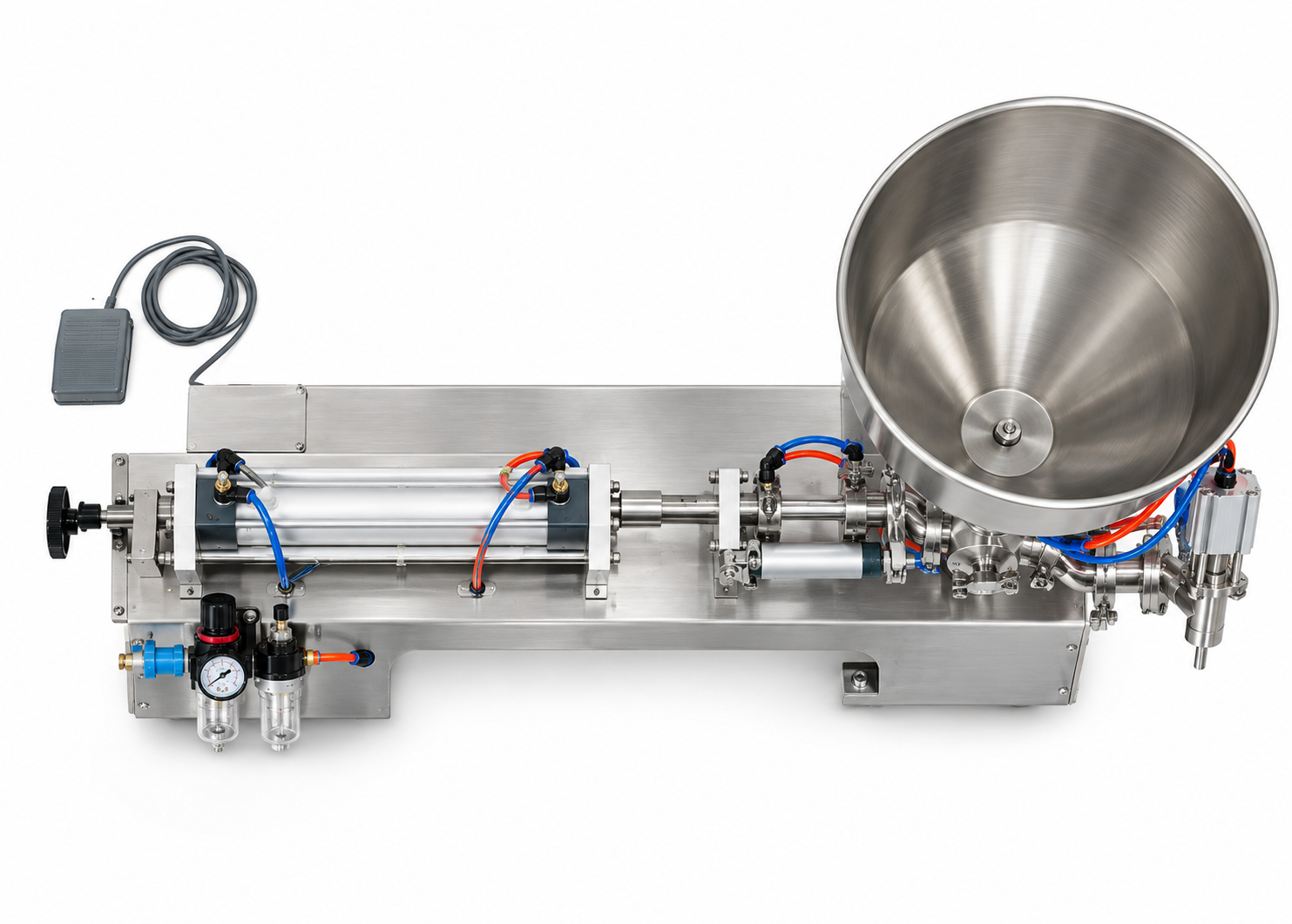

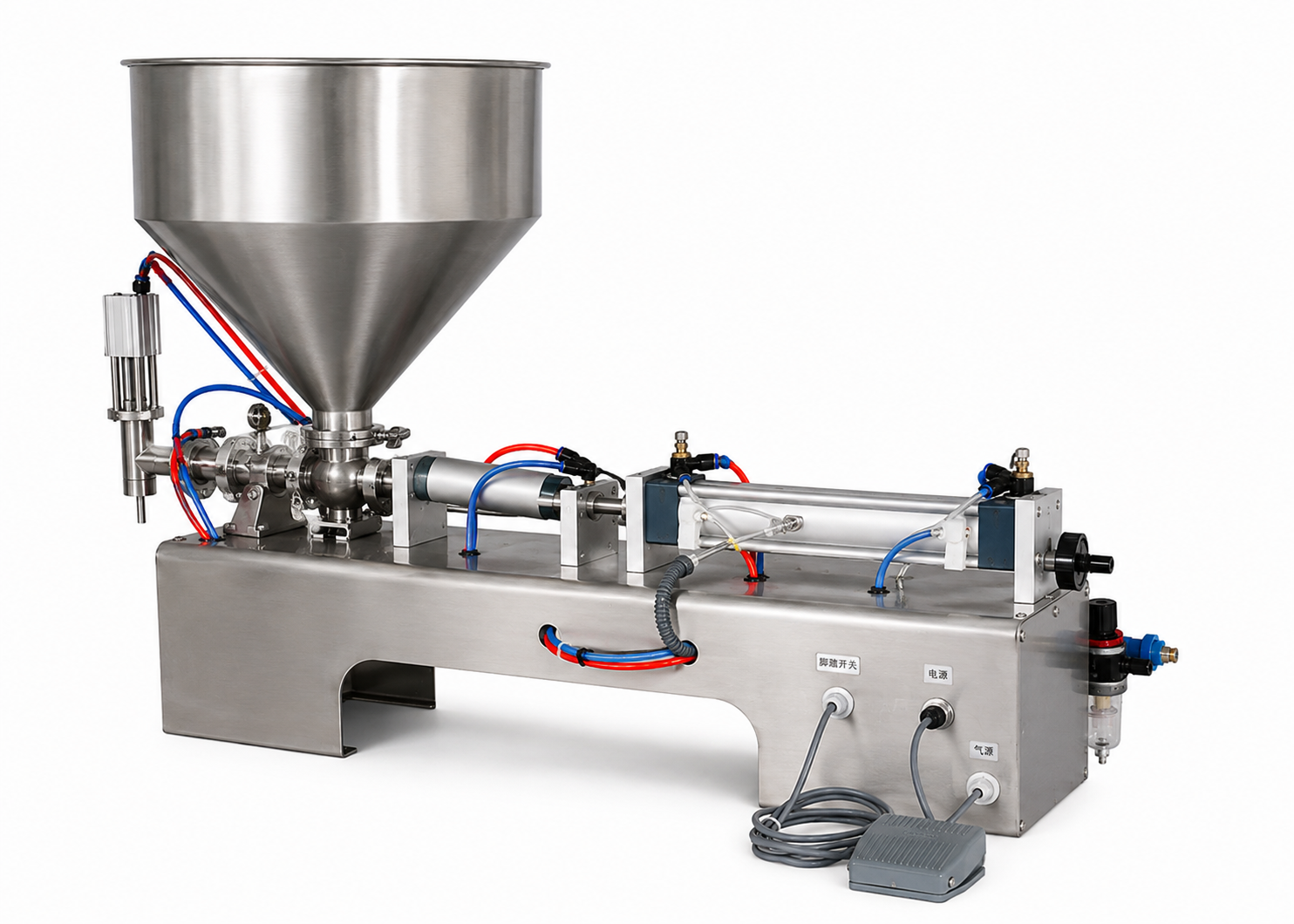

SEMI-AUTOMATIC PNEUMATIC PISTON FILLING MACHINE

The Semi-Automatic Pneumatic Piston Filling Machine with Hopper is designed for accurate and efficient filling of creams, lotions, gels, sauces, honey, and other viscous or semi-viscous products. Featuring a precision piston filling system, stainless steel conical hopper, pneumatic operation, and adjustable filling volume, this machine provides reliable performance for cosmetic, food, pharmaceutical, and chemical industries. Its compact design and easy operation make it suitable for small and medium-scale production.

Key Features

• Semi-automatic pneumatic operation
• Precision piston-based filling system
• Stainless steel conical product hopper
• Adjustable filling volume
• Foot pedal operated filling control
• Single filling nozzle design
• Suitable for thick, viscous and semi-viscous products
• Easy filling speed adjustment
• Compact tabletop machine design
• Easy cleaning and maintenance
• Pneumatic air filter and pressure regulator
• Stainless steel product-contact parts

Technical Specifications

• Machine Type: Semi-Automatic Pneumatic Piston Filling Machine
• Operation Type: Semi-Automatic
• Filling Mechanism: Pneumatic Piston Filling System
• Filling Range: 10–100 ml / 50–500 ml / 100–1000 ml (Model Dependent)
• Filling Accuracy: Approx. ±1%
• Filling Speed: Approx. 600–1,500 Containers/Hour (Product Dependent)
• Filling Head: Single Head
• Hopper Type: Stainless Steel Conical Hopper
• Hopper Capacity: Approx. 20–30 Litres / Customizable
• Air Pressure: Approx. 0.4–0.6 MPa
• Material Contact Parts: SS 304 Stainless Steel
• Nozzle Type: Single Filling Nozzle
• Control Method: Foot Pedal / Manual Control
• Application: Cosmetic, Food, Pharmaceutical & Chemical Products
