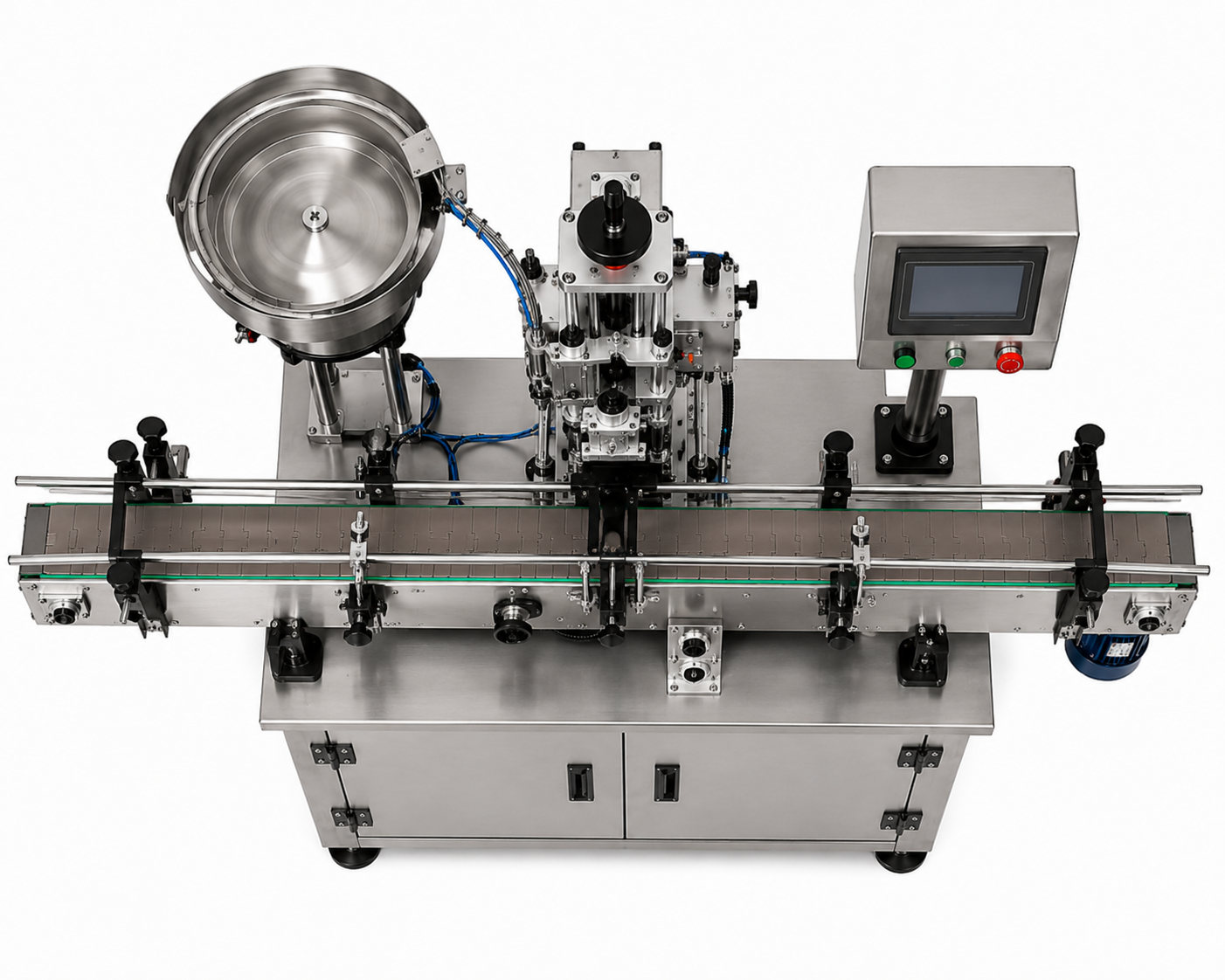

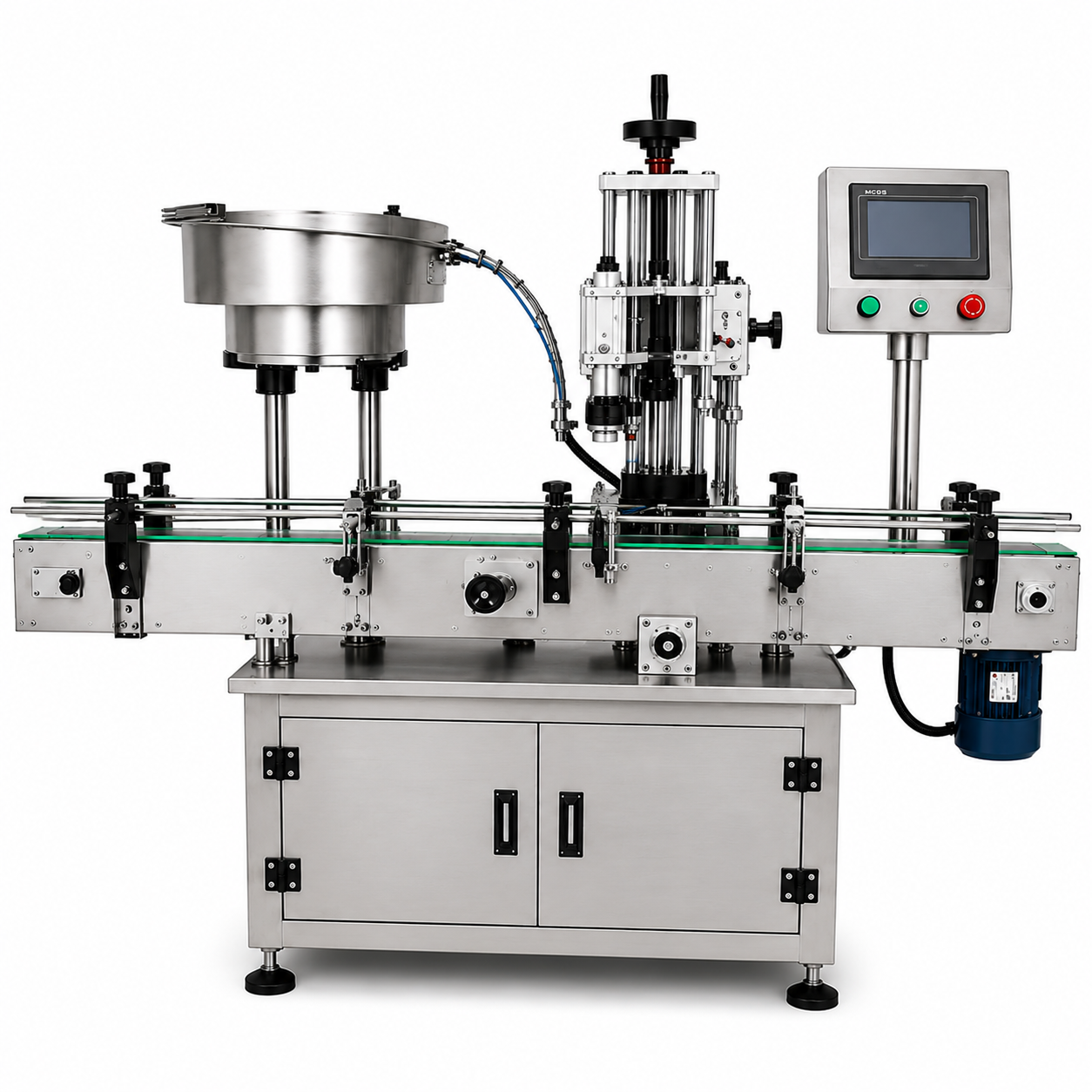

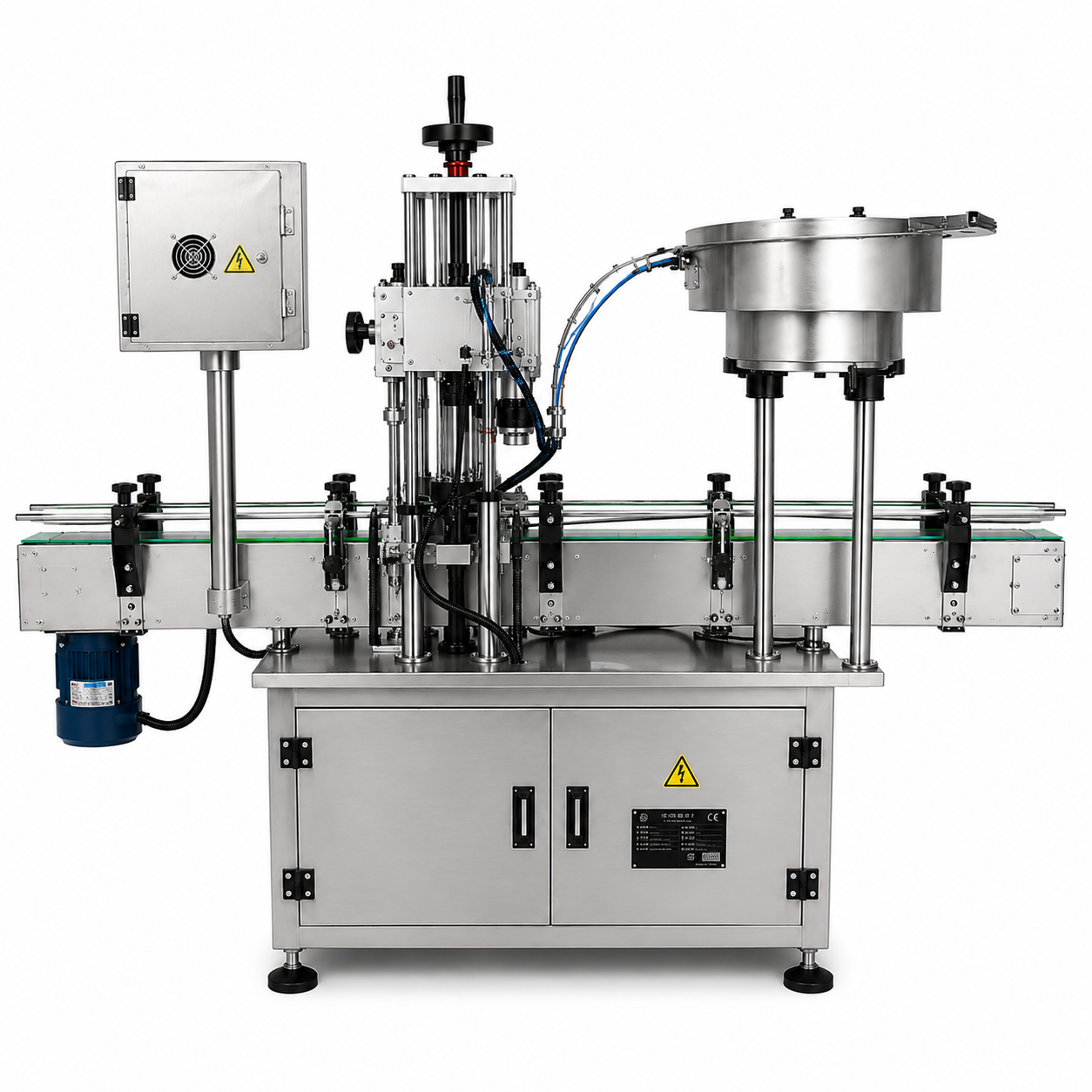

The Automatic Screw Capping Machine is designed for fast, accurate, and continuous capping of round and cylindrical bottles. It is suitable for plastic and metal screw caps and features an automatic vibratory bowl feeder for efficient cap feeding. With adjustable capping settings, PLC + touchscreen HMI control, and SS 304 stainless steel construction, this machine is an ideal solution for pharmaceutical, cosmetic, FMCG, and chemical packaging applications
KEY FEATURES
• Fully automatic screw capping operation • Suitable for plastic and metal screw caps • Automatic vibratory bowl cap feeding system • Compatible with round and cylindrical bottles • High-speed continuous capping operation • Adjustable capping torque for secure cap tightening • PLC + touchscreen HMI control system • Adjustable guides for different bottle sizes • SS 304 stainless steel construction • Suitable for pharmaceutical, cosmetic, FMCG and chemical industries
TECHNICAL SPECIFICATIONS
• Machine Type: Automatic Screw Capping Machine • Capping Method: Automatic Screw Capping • Suitable Caps: Plastic / Metal Screw Caps • Suitable Bottles: Round & Cylindrical Bottles • Capping Speed: Approx. 30–150 Bottles/Min • Bottle Diameter: 20–120 mm • Bottle Height: 40–300 mm • Cap Diameter: 20–60 mm • Cap Feeding: Automatic Vibratory Bowl Feeder • Control System: PLC + Touchscreen HMI • Machine Material: SS 304 Stainless Steel • Power Supply: 220V / 380V, 50/60 Hz • Power Consumption: Approx. 1.5–2.0 kW • Air Pressure: 0.5–0.7 MPa • Operation: Continuous Automatic • Application: Pharmaceutical, Cosmetic, FMCG & Chemical Industries
